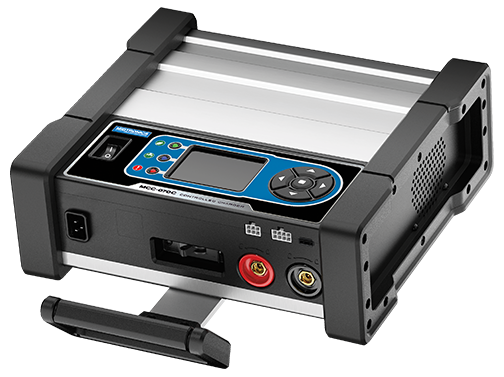

The MCC offers benefits that address the unique needs of any service application:

• Different accessory options such as a handle, base and wall-mount (not included)


• Charges batteries - including new AGM & EFB models quickly and easily


• Automatic and efficient charge recovery for deeply discharged batteries


• Provides on demand current and constant clean voltage to the vehicle battery for the extended period of time required to update the vehicle computer software. Selectable voltage levels from 13.5 - 14.5 VDC (.1 VDC)


• Clearly indicates charger status: charging, charge complete, charging error/fault


• Quick charging at 14.5VDC / 40A


• Controlled charging: EFB 15.5 VDC / 70A and AGM 14.5 VDC / 40A

Easy to use:

• Connect the charger clamps to the battery posts


• The voltage shows in the upper left corner of the charger display


• Select the charge app that you want to use


• Setup the battery charge


• Charging is performed


• View the test results

What can you expect?

• 5 meter charge cables


• 2 meter power cords


• Safety features such as reverse polarity, clamp connection, non-12V connection, battery voltage too low (< />


• Lead Acid, AGM, EFB supported

Technical Specifications:

Operating Parameters:

• Input Voltage: 120 VAC; 60 Hz; 12A maximum, 240 VAC, 50 Hz, 10A maximum


• Output: 15VDC; 70A maximum

 Battery Chemistries:

• Lead acid


• AGM


• EFB


• Lithium ion

Dimensions (without handle or base):

• Height: 4.80 in (12.19 cm)


• Width: 13.1 in (33.27 cm)


• Length: 12.0 in (30.48 cm)


• Weight:18 lbs (8,16kg)

For information on repair and warranty handling, please click on the “Download” tab and “Contact Details”.
